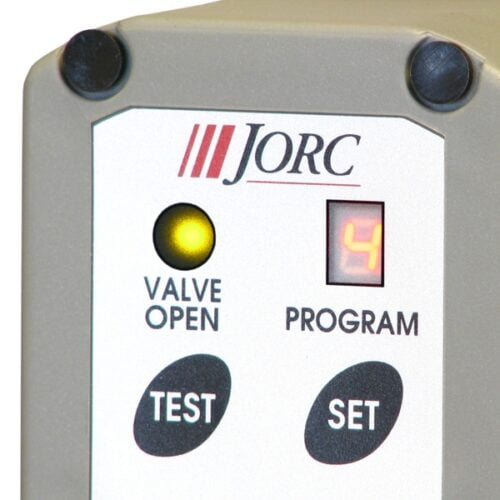

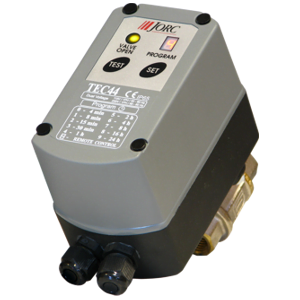

DescriptionThe TEC-44 is a powerful timer controlled motorised ball valve, designed to remove condensate from deliquescent dryers, tanks, vessels and refrigerated dryers.The TEC-44 is designed to remove heavy contaminated condensate up to pressure ratings of 40 bar. This condensate drain can not be blocked and is applied where all else fails. Draining applications with a high level of contamination (rust, scale etc.) require the TEC-44.The TEC-44 is impossible to block due to its powerful ball valve rotation and large orifice.SPECIFICATIONSMAXIMUM COMPRESSOR CAPACITYAny sizePRESSURE RANGE0 – 40 barSUPPLY VOLTAGE OPTIONS24VDC, 115VAC and 230VAC 50/60Hz. (please indicate)MEDIUM TEMPERATURE1 – 60 °CAMBIENT TEMPERATURE1 – 55 °CTIMER CYCLE RANGE (ON / OFF)7 seconds to 15 minutes ON / 4 minutes to 24 hours OFFACTUATOR PCBSMD technology, ensuring consistency in productionTIMER CYCLE INDICATIONBright LED illumination, LED program indicatorTEST FEATUREYesVALVE TYPE2/2 way, motorised ball valveVALVE ORIFICE12 mmVALVE SEALSFPM and TeflonINLET/OUTLET CONNECTIONS1/2″ (BSP or NPT)INLET CONNECTION HEIGHT1.0 cmSERVICEABLE VALVEYesVALVE HOUSING MATERIALBrass nickel plated, ballvalve stainless steelPOWER CONNECTIONCable and plugENVIRONMENTAL PROTECTIONIP65 (NEMA4)REMOTE SWITCH OPTIONYes https://www.jorc.eu/media/4423/tec44-yorick-11-2020.mp4
