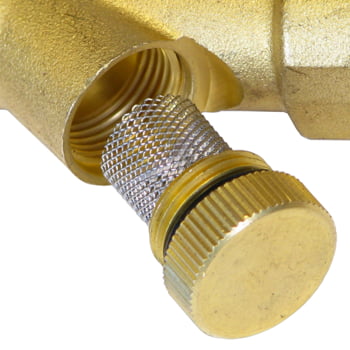

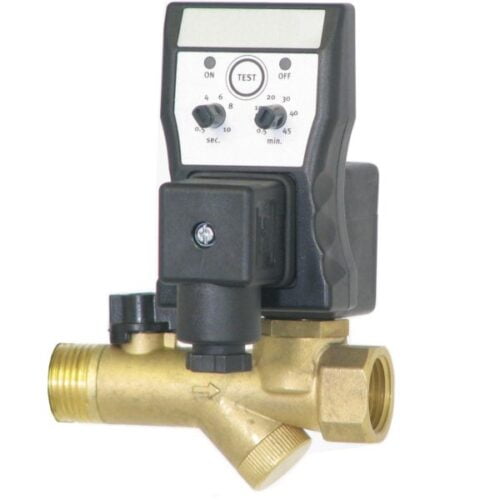

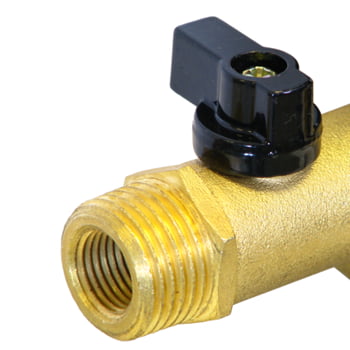

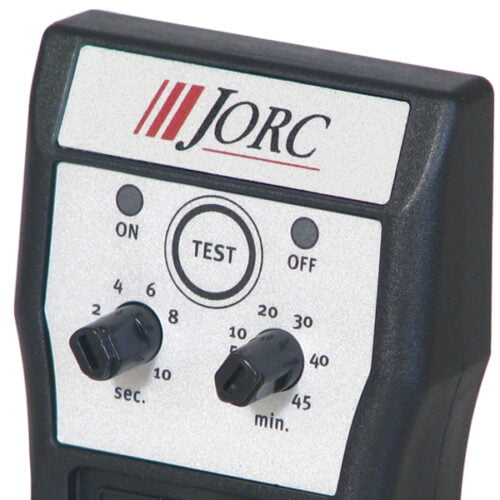

DescriptionThe JORC Combo Fluidrain feature is a predetermined time setting applied on timer controlled condensate drains designed to automatically remove condensate from compressed air systems.The JORC Combo Fluidrain is designed to remove condensate from compressors, compressed air dryers and receivers up to 20 m³/min. compressor capacity and 10 bar pressure.The FLUIDRAIN-COMBO-QUICKSET saves installation time and protects against large particles found in condensate, thanks to the integrated ball valve strainer and the QuickSet timer adjustability.Simply adjust the timer according to the compressor capacity and the operating pressure – and go!Can either be hard wired by a licensed electrician or purchase a 3mtr power cable to adapt onto timer and simply plug into power supply.SPECIFICATIONSMAXIMUM COMPRESSOR CAPACITY20 m³/min.PRESSURE RANGE0 – 10 bar (higher pressure available, see FLUIDRAIN)SUPPLY VOLTAGE OPTIONS24 – 240 VAC/DC 50/60Hz. (please indicate)MEDIUM TEMPERATURE1 – 55 °CAMBIENT TEMPERATURE1 – 55 °CTIMER CYCLE RANGE (ON / OFF)Simply select the compressor capacity and pressure!TIMER PCBSMD technology, ensuring consistency in productionTIMER CYCLE INDICATIONBright LED illuminationTEST FEATUREYesVALVE TYPE2/2 way, direct actingVALVE ORIFICE4 mmVALVE SEALSFPMINLET/OUTLET CONNECTIONS1/4″ & 1/2″ (BSP or NPT) / 1/2″ (BSP or NPT)INLET CONNECTION HEIGHT1 cmSERVICEABLE VALVEYesVALVE HOUSING MATERIALBrass (Stainless steel available, see FLUIDRAIN)POWER CONNECTIONDIN 43650-AENVIRONMENTAL PROTECTIONIP65 (NEMA4)
